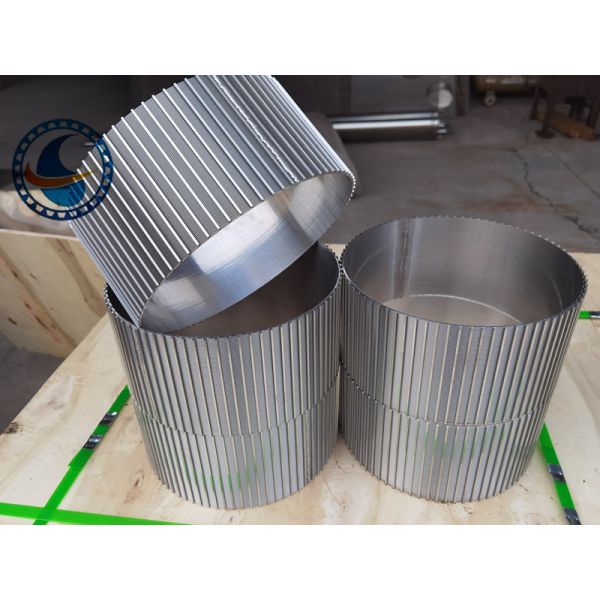

Reverse Profile Wire Wedge Wire Screen Filter Of Stainless Steel 304

Name: Reverse Profile Wire Wedge Wire Screen Filter Of Stainless Steel 304
Brand: HengYuan
Price: 1 USD

Brand Name : HengYuan

Model Number : HY070801

Certification : ISO,CO,FORM E,CIQ, etc

Place of Origin : Hengshui City,Hebei Provincei,China

MOQ : 1 piece

Price : Negotiated price

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1500 pcs /month

Delivery Time : 7 days

Packaging Details : wooden box

Name : Reverse Wedge Wire Filter

Material : Stainless steel 304

Diameter : 225mm

Length : 125mm

Slot : 0.095mm

Wire : 1*2mm Vee wire

Support rod : 2*3mm Vee wire

Ends : Nothing

Technique : Point welding

Features : Non-clogging

Application : Filteration

Package : Wooden box

Business type : Manufacturer

Filter type : From inside to outside

Contact Now

Reverse Profile Wire Wedge Wire Screen Information:

Material : Stainless steel wire.Such as: SS304, SS201, SS316L etc.

Diameter : 100-1300 mm ,can make as customers request.

Slot: 0.02-10mm

Length :10-4000mm

End connection:male/female threaded couplings ,plain beveled welded ring ends ,flange,closed,same slot sieve plate.

Filter type:From outside to inside. also can make other type:From inside to outside.

Wire size: 1*2mm, 1.2*2mm, 1.5*2mm, 1.5*2.5mm, 2*3mm, 2*3.5mm, 2*4mm, 3*4.6mm, 3*5mm etc.

Support rod: 2*3mm, 3*4.6mm, 3*5mm etc.

Reverse Profile Wire Wedge Wire Screen Filter type:

Flow inside to outside also known as filtration in to out (FITO) happens when the support profile is horizontal to the surface profile of the wedge wire filter.

Flow inside to outside is ideal if you want to maintain the pressure of the fluid during the filtration.

However, there will be frequent cake formation as a result of the deposit of contaminants at the sides of the wedge wire filter.

This is due to the small inner diameter which does not generate enough pressure to force the contaminants.

Reverse Profile Wire Wedge Wire Screen Filter Of Stainless Steel 304

Reverse Profile Wire Wedge Wire Screen Normal wire and support size:

Reverse Profile Wire Wedge Wire Screen Filter Of Stainless Steel 304
